      HEADER Connectors 系列
Picture Description Part  NO. PDF
 2.54mm Pitch Latch Header Straight DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
LH1-20SFR
　
 2.54mm Pitch Latch Header Right Angle DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
LH1-20RFR
　 　
　  2.0mm Pitch Latch Header Straight DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
LH2-20SFR
　 　
　  2.0mm Pitch Latch Header Right Angle DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
LH2-20RFR
　 　

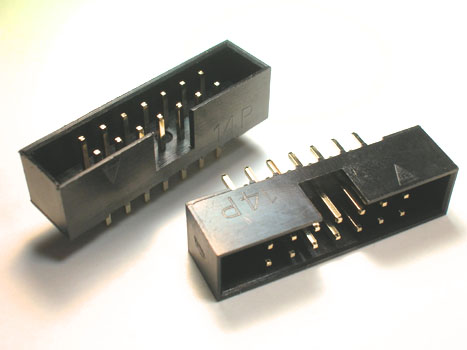

　  2.54mm Pitch Box Header Straight DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute
BH1-16SFR
　 　

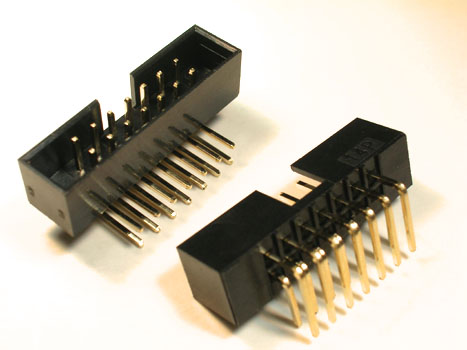

　  2.54mm Pitch Box Header Right Angle DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
BH1-16RFR
　 　

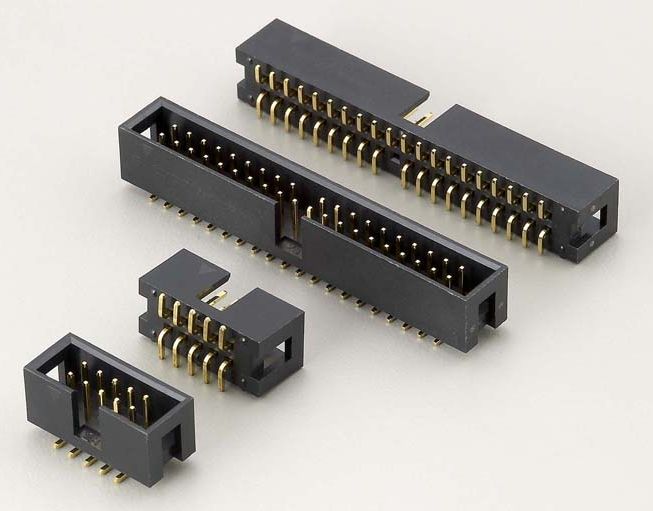

　  2.54mm Pitch Box Header SMT Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
BH1-16SFR01
　 　
　  2.0mm Pitch Box Header Straight  DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
BH2-16SFR
　 　
　  2.0mm Pitch Box Header Right Angle  DIP Connector
 Current Rating: 3A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
BH2-16RFR
　 　

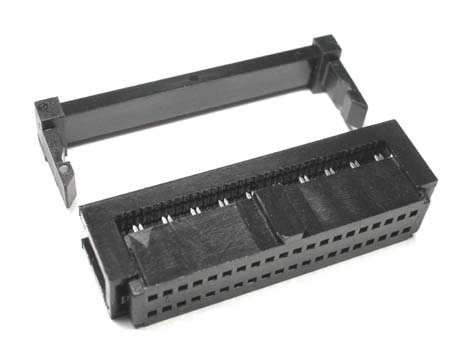

　  2.54mm Pitch IDC Socket Connector
Current Rating: 1A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
FC-16P
　 　
　  2.0mm Pitch IDC Socket Connector
Current Rating: 1A AC,DC
 Voltage Rating: 500V AC, DC
 Temperature Range: -45℃~+105℃
 Contact Resistance: 20m Omega Max.
 Insulation Resistance: 1,000M Omega Min.
 Withstanding Voltage: 800V AC/minute　		 　 　
FC2-16P
