   Power Jack DIP Connector 系列
Picture Description Part  NO. PDF

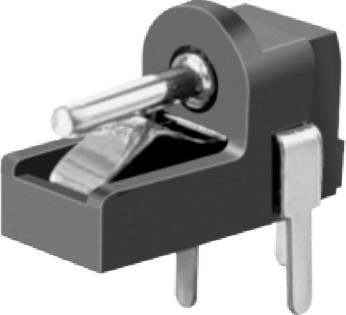

 Center Pin Diameter：0.65 / 1.0 / 1.3mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min     		DC001

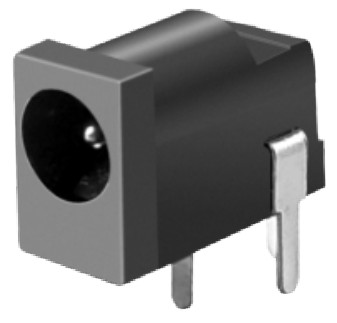

 Center Pin Diameter：0.65 / 1.0 / 1.3mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min  		DC002

 Center Pin Diameter：1.65mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min		 DC003

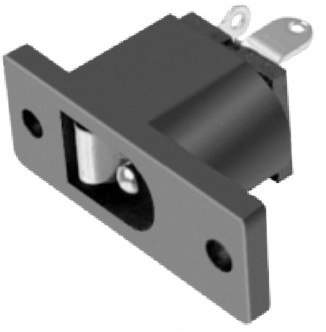

 Center Pin Diameter：2.0 / 2.35 / 2.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min  		DC002A


 Center Pin Diameter：Φ1.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min 		 DC003A

 Center Pin Diameter：2.0 / 2.35 / 2.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min		 DC005

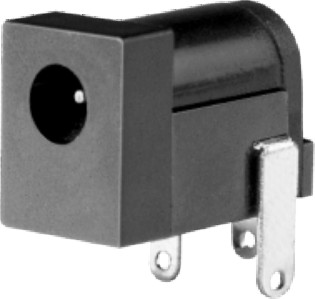

 Center Pin Diameter：1.3mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min　		 DC005C

 Center Pin Diameter：2.0 / 2.35 / 2.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min 　		 DC006A

 Center Pin Diameter：2.0 / 2.35 / 2.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min 　		 DC006F

 Center Pin Diameter：1.65 / 2.0 / 2.5mm
 Current Rating: 1.0A  DC30V
 Contact Resistance : 30mΩ Max
 Operating Temperature: -30℃~+75℃
 Withstanding Voltage: 500V AC/minute
 Insulation Resistance: 100MΩ  Min 　		 DC006G
